What happens if you put regular paper in a thermal printer?

When you put regular paper into a direct thermal printer, nothing will print, leaving the paper completely blank. Standard bond or offset paper lacks the thermo-reactive chemical coating (containing leuco dyes and color developers) required to react with the thermal print head's microscopic heat elements, while simultaneously causing increased mechanical abrasion and micro-friction against the delicate heating elements.

At a Glance

The Fundamental Physics of Direct Thermal Printing Mechanics

Direct thermal printing relies exclusively on controlled localized heating of thermo-reactive substrate coatings to form high-contrast images without the use of liquid ink, ribbons, or electrophotographic toner.

The underlying mechanics of a thermal printer differ fundamentally from traditional inkjet or laser systems. Instead of jetting liquid droplets or fusing dry resin powder, a thermal printer utilizes a specialized stationary component known as a thermal print head. This print head consists of a high-density linear array of microscopic resistive heating elements, often reaching resolutions of 203 to 300 dots per inch. When digital raster data is processed, specific heating elements energize dynamically, rapidly cycling through temperature spikes exceeding 200 degrees Celsius in microsecond bursts.

This thermal energy transfers directly into the surface of the moving thermal paper passing beneath the print head under calibrated mechanical pressure. The thermal media itself is an engineered composite material containing a base paper layer, an undercoat for insulation, a active thermochemical coating, and often a protective topcoat. The active layer contains colorless leuco dye microscopic capsules mixed with an acid developer, such as bisphenol compounds or non-phenol alternatives, bound within a solid matrix matrix.

When the localized heat from the print head elements strikes this coating, the solid matrix instantly melts. This phase change allows the colorless leuco dye and the organic acid developer to dissolve and mix at a molecular level. The chemical reaction alters the molecular structure of the leuco dye, converting it into its colored form, which appears as dense black or blue marks on the substrate surface. As the paper advances past the nip line, the material cools immediately, permanently locking the visible pigment into place without drying delays or liquid smudging.

Why Regular Bond Paper Fails in Direct Thermal Mechanisms

Standard office paper produces zero image transfer in a direct thermal printer because it completely lacks the thermo-reactive leuco dye and developer chemicals required to react with the thermal print head's heat output.

When standard 20-lb bond paper, copy paper, or offset press stock is loaded into a direct thermal mechanism, the thermal print head operates normally from an electrical perspective. Microscopic resistive elements cycle through high temperatures, burning digital pattern profiles directly onto the substrate surface. However, because standard wood-pulp paper contains only raw cellulose fibers, optical brighteners, and sizing agents, there are no chemical compounds present to undergo a heat-induced color transition. The paper emerges from the feed path completely blank.

Beyond producing no visible print, standard paper disrupts the thermal dynamics designed into the printer's mechanical control systems. Thermal paper is engineered with precise thermal conductivity profiles; its insulating sub-layer reflects thermal energy back toward the print head surface to maximize chemical reaction efficiency. Regular bond paper absorbs heat indiscriminately, drawing thermal energy away from the surface ceramic array while simultaneously failing to cool down at the expected rate during high-speed paper advancement.

Furthermore, standard paper surfaces exhibit significant microscopic friction variations. Direct thermal mechanisms depend on the ultra-smooth, low-abrasion profile of coated thermal media. Raw cellulose fibers present on uncoated copy paper exert high drag against the microscopic glass glaze of the thermal print head. Running uncoated paper through these mechanisms subjects the heating element array to dry sliding friction, accelerating mechanical wear and generating static electricity that can damage sensitive driver electronics.

Structural and Mechanical Differences in Paper Substrates

Thermal paper is a specialized multi-layer chemical substrate designed for low-friction thermochemical image generation, whereas standard paper is a single-layer fibrous sheet optimized for liquid ink absorption and xerographic toner adhesion.

Understanding the physical structural differences between these media types reveals why they are completely non-interchangeable. Standard office paper is produced through mechanical or chemical pulping, creating a web of interwoven cellulose fibers bound together with starch and mineral fillers such as calcium carbonate. The surface profile is intentionally porous and textured to absorb liquid inkjet inks or physically retain electrochemically attracted toner powders during high-temperature pressure roller fusing.

In contrast, thermal media manufacturing involves precision micro-coating technology. The base paper stock undergoes intense super-calendering, a heavy rolling process that flattens surface fibers to achieve microscopic smoothness. Multiple synthetic layers are applied sequentially via slide-hopper or curtain coaters. The insulating undercoat ensures that heat energy remains localized at the top active surface, preventing heat dissipation into the core. The active thermochemical layer is applied with microscopic uniformity to ensure consistent print density across the entire print width.

Many commercial thermal substrates also feature protective topcoats applied over the active chemistry. These acrylic or polyvinyl alcohol coatings protect the reactive dye layer against chemical degradation caused by water, oils, alcohol, plasticizers in storage sleeves, and aggressive environmental conditions. Standard bond paper lacks every single one of these specialized sub-layers, making it structurally incompatible with thermal print head profiles.

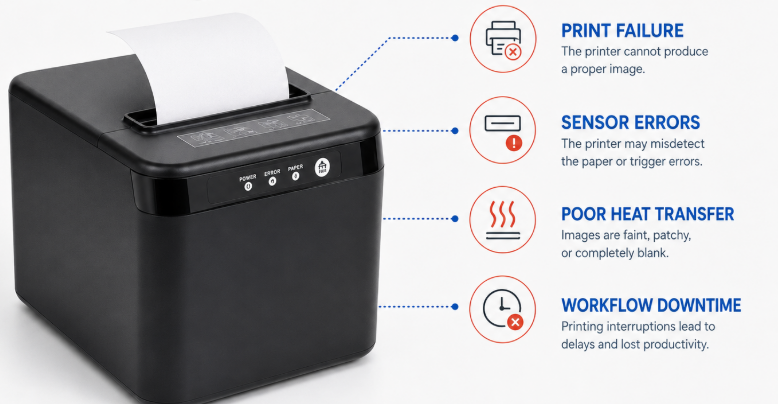

Immediate Operational Consequences of Loading Incompatible Paper

Loading regular paper into a direct thermal printer instantly halts operational workflows by producing unreadable blank documents, triggering false sensor alarms, and risking physical media jams inside the print engine.

The immediate consequence in any point-of-sale, healthcare, or logistics environment is complete processing failure. When a thermal printer attempts to generate shipping labels, barcodes, or transaction receipts on standard paper, the output is completely devoid of markings. In automated supply chain applications, this results in unreadable blank labels passing along conveyor lines, leading to immediate scanning failure alarms, package re-routing errors, and costly manual intervention requirements.

Mechanical feed problems also manifest almost instantly. Direct thermal printers calibrate their paper-advancement stepper motor torque and platen roller tension based on the specific thickness, stiffness, and coefficient of friction of thermal rolls. Standard office paper stock possesses different caliper thickness tolerances and surface stiffness parameters. Loading non-compliant paper often leads to misaligned feeding, improper media tensioning, severe paper skewing, and physical jamming within the tear-bar or automatic cutter assembly.

Additionally, standard paper disrupts internal media detection systems. Modern thermal printers utilize transmissive or reflective optical sensors to detect web gaps, black marks, or paper-out conditions. The optical transmissivity and surface reflectivity of standard paper differ significantly from coated thermal stock. Optical sensors often fail to detect media presence or miscalculate label gap boundaries, causing continuous feed errors, continuous blinking error lights, and full firmware lockouts until proper media is reloaded.

When managing high-throughput point-of-sale environments, reliable desktop receipt hardware becomes essential. Integrating high-performance equipment like the thermal printer 80mm USB LAN port 3 inch barcode thermal printer ensures seamless media feeding and rapid receipt generation, provided operations strictly utilize certified thermo-reactive media rolls designed for 80mm printing channels.

Long-Term Damage and Hardware Degradation Risks

Attempting to continuously run standard paper through a direct thermal printer causes permanent thermal degradation, severe physical abrasion on print head elements, and premature mechanical failure of drive components.

The direct contact surface of a thermal print head is protected by an extremely thin glass glaze layer, typically measuring only a few micrometers in thickness. This layer shields the delicate silicon heating elements beneath. Standard paper fibers are composed of rough, unrefined wood pulp combined with mineral fillers like calcium carbonate, which act as micro-abrasives under pressure. Passing meters of raw bond paper across the print head under active spring tension acts like microscopic sandpaper, wearing away the protective glaze layer and exposing the underlying thin-film resistors to environmental oxidation and physical destruction.

Thermal management issues further compound physical damage. Direct thermal print heads depend on the thermo-reactive paper substrate to act as a heat sink during high-speed printing cycles. As the paper moves, it absorbs thermal energy through its active melting chemistry and carries heat away from the print zone. Regular paper lacks this endothermic phase-change mechanism, causing thermal energy to bounce back and accumulate within the ceramic print head array. This localized heat retention creates severe thermal stress, leading to burnt-out heater dots, uneven print density, and total element array burnout.

Finally, non-thermal paper continuously sheds unbonded cellulose fibers and mineral dust into the internal mechanical assemblies. This particulate debris mixes with ambient humidity and gear lubricants, forming an abrasive paste that settles onto the rubber platen roller and precision drive gears. Over time, this debris degrades platen surface traction, causes slip friction during media advancing, and eventually leads to mechanical motor strain and gear tooth strip failures.

Maintenance Attention: Always perform physical media validation before loading unverified paper rolls into production equipment. If non-standard paper is accidentally loaded and run, immediately power down the unit, open the print mechanism, and thoroughly clean the thermal print head glaze line using isopropyl alcohol (99% pure) swabs to remove raw micro-fiber deposits and mineral dust before resuming operation with certified thermal media.

How to Accurately Identify Thermal Paper versus Standard Paper

You can instantly verify whether a paper roll is thermal stock by executing a swift fingernail scratch test across the surface, which generates localized friction heat and produces a clear black stripe on true thermal media.

Because standard paper rolls and unprinted thermal rolls can look virtually identical to the naked eye, operators must utilize quick field tests to verify media compatibility before installation. The most reliable and instantaneous physical test is the friction scratch technique. By firmly scratching the surface of the paper with a fingernail or the smooth edge of a plastic card at high speed, localized friction heat is generated. On genuine thermal paper, this rapid micro-heating instantly triggers the chemical leuco dye reaction, leaving a prominent black or dark blue streak along the scratch line. Standard paper remains completely unchanged.

Another reliable diagnostic method involves direct heat exposure from an external source. Holding a thermal paper roll near a low-temperature heat source, such as the warm side of a hot coffee mug or a controlled warm air jet, causes the entire heated region to turn jet-black instantly as the chemical matrix reaches its melting threshold. Standard office paper shows no color change under identical conditions until it reaches physical combustion temperatures.

Visual and tactile inspections also offer useful preliminary indicators. Thermal paper generally exhibits a high-gloss or satin surface finish on its active printing side due to the smooth chemical topcoats and intense super-calendering manufacturing processes. Standard bond paper presents a flat, matte appearance with noticeable surface texture and microscopic fiber grain under directional light. Furthermore, thermal paper feels distinctively smoother between fingertips compared to the dry, slightly rough surface of standard copy paper stock.

Professional Media Selection Guidelines for Enterprise Thermal Printers

Selecting enterprise-grade thermal media requires matching chemical topcoating specifications, paper caliper, basis weight, and environmental durability ratings to the specific requirements of your commercial operational environment.

To achieve optimal print quality, extended print head longevity, and compliant scan rates for 1D and 2D barcodes, enterprise procurement departments must select thermal paper manufactured to precise technical standards. Non-topcoated thermal paper is suitable for standard indoor retail receipt applications where exposure to heat, sunlight, water, and organic solvents is minimal. However, logistics, manufacturing, and healthcare environments require fully topcoated thermal stock. Synthetic topcoats protect the chemical layer against degradation caused by plasticizer migration from vinyl storage sleeves, direct water contact, hand oils, grease, and ambient storage temperatures exceeding 40 degrees Celsius.

Physical dimensions and core engineering configurations are equally critical for system performance. Thermal rolls must feature precise width tolerances (such as standard 58mm, 80mm, or 104mm formats) with smooth, burr-free edge slits to prevent mechanical binding along feed guides. Core inner diameters and outer roll diameters must conform strictly to internal cabinet dimensions to avoid excessive rotational drag on the stepper motor. Using rolls with uneven tension winding or incorrect caliper thickness strains internal drive assemblies and disrupts optical gap sensor readings.

Furthermore, dynamic sensitivity ratings must match the heating profile of your installed hardware. High-sensitivity thermal papers require lower heat energy input from the print head to achieve maximum optical black density, making them ideal for high-speed printing mechanisms operating above 200mm per second. Standard-sensitivity media requires higher energy pulses and is suited for lower-speed desktop terminals. Matching paper sensitivity to printer driver settings prevents excessive heat application, reducing print head stress and extending total hardware operating lifespan.

In demanding commercial settings requiring multi-interface connectivity, deploying robust hardware such as the 3 inch thermal printer with LAN port allows businesses to connect multiple network workstations to a central receipt hub, provided the system is loaded with high-sensitivity, enterprise-grade 80mm thermal rolls engineered for continuous high-speed transaction processing.

Engineering Solutions for Multi-Media Printing Requirements

Organizations that require printing on non-coated standard paper alongside high-speed thermal media must implement thermal transfer hardware featuring ribbon mechanisms or deploy dual-technology hybrid printing configurations.

When enterprise applications demand printing on plain bond paper, standard tag stock, or durable synthetic films that lack thermochemical coatings, direct thermal hardware cannot fulfill the requirement. The appropriate engineering solution is Thermal Transfer technology. While thermal transfer printers utilize thermal print heads identical in construction to direct thermal devices, they introduce an intermediate consumable: an ink-coated thermal transfer ribbon.

In a thermal transfer system, the energized print head elements melt pigment wax or resin off the carrier ribbon, transferring the ink directly onto the surface of plain paper or non-thermal stock passing beneath. This process allows businesses to print highly durable, archival-grade barcodes and text on standard, non-coated substrates without requiring thermo-reactive paper chemistry. Many commercial industrial printers feature dual-mode capability, allowing operators to switch between direct thermal mode (using thermal paper without ribbon) and thermal transfer mode (using standard paper with ribbon) through simple driver adjustments.

For retail and hospitality environments that need to process traditional paper documents alongside thermal receipts, hybrid printing terminals provide an integrated solution. Hybrid receipt printers combine a high-speed direct thermal mechanism for standard transactional receipts with an integrated impact dot-matrix module designed for multi-part forms, checks, or plain paper validation slips. This dual-engine architecture ensures that each paper type is processed by its dedicated, mechanically optimized engine, eliminating media compatibility issues and preventing premature print head wear.

Implementing high-efficiency point-of-sale setups demands reliable desktop engineering that balances space-saving footprints with robust network integration. Devices like the USB LAN barcode thermal printer 80mm provide enterprise environments with dependable direct thermal execution, ensuring that when matched with premium thermo-reactive paper stock, your point-of-sale architecture operates at peak performance without thermal head degradation or operational interruptions.

In conclusion, attempting to print on regular paper using a direct thermal printer is fundamentally incompatible with the underlying thermochemical physics of direct thermal technology. Without the necessary leuco dye and developer coatings, standard bond paper will always emerge completely blank while simultaneously subjecting sensitive print head heating arrays to excessive thermal stress, abrasive wear, and mechanical fiber buildup. By understanding substrate mechanics, adhering to proper media selection protocols, and matching printing technologies to media requirements, enterprise operations can ensure high-contrast output, maximize equipment longevity, and eliminate costly workflow disruptions.
