Thermal Printers – Specs and Use Cases

At a Glance

Understanding Thermal Printing Technology and Mechanism Design

Thermal printing technology functions through the controlled application of localized thermal energy from a microscopic heating element array directly onto heat-sensitive media or thermal transfer ribbons.

The underlying mechanics of a thermal printer eliminate the need for liquid ink cartridges, toner drums, or traditional impact ribbons. Instead, the core component is a solid-state line thermal printhead consisting of a dense line of microscopic resistive elements. When electrical current passes through these specific elements, they rapidly heat up and cool down within milliseconds. As the print media passes evenly across the printhead surface under continuous mechanical pressure from a precision rubber platen roller, the controlled heat pulse triggers a chemical reaction in the direct thermal paper coating or melts a layer of wax/resin ribbon onto an industrial substrate.

From an engineering perspective, maintaining uniform line density and consistent darkness requires absolute mechanical alignment between the thermal printhead, the platen roller, and the paper feed module. Modern high-duty mechanisms incorporate heavy-duty alloy chassis structures to dissipate operational heat effectively. Excessive thermal accumulation across the printhead array leads to thermal bleed, print ghosting, or premature element burnout. Consequently, thermal management design—including internal aluminum heat sinks and dynamic firmware temperature compensation algorithms—is a primary differentiator between light-duty desktop units and industrial-grade thermal engines built for 24/7 continuous output.

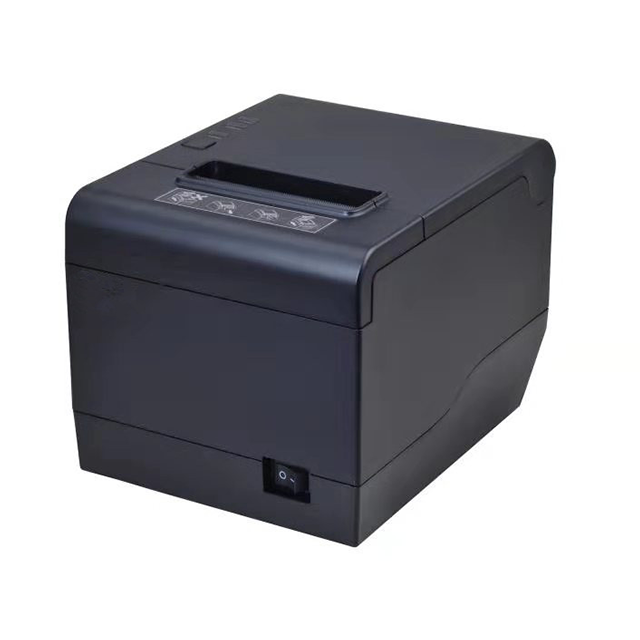

In heavy-volume POS installations, operational stability depends heavily on integrated mechanical components like print engines, media drive gears, and step motors. For deployments demanding reliable data throughput alongside physical durability, enterprise environments rely on specialized architecture such as the High-Performance 80mm USB LAN Thermal Printer to maintain seamless data processing and clean paper feeding. High-torque stepper motors prevent media slippage during rapid print cycles, while optimized drive gears distribute mechanical stress evenly to maximize component lifespan across millions of transactional prints.

To understand the core hardware architecture of a standard commercial thermal printing engine, review the primary structural components listed below:

Key Engineering Specifications of Modern Thermal Printers

Key thermal printer specifications include dot resolution, linear print speed, printable width, cutter reliability, motor duty cycle, and communication interface protocol.

Evaluating thermal hardware requires a thorough technical breakdown of performance parameters to match specific operational demands. Print resolution is measured in Dots Per Inch (DPI) or dots per millimeter (dmm). Standard commercial receipt and shipping label printers typically operate at 203 DPI (8 dots/mm), which offers an optimal balance between fast rasterization speed and sharp readable output for standard 1D barcodes and text. High-density applications, such as micro-barcode tracking on electronics manufacturing lines or small pharmaceutical labels, utilize 300 DPI (12 dots/mm) or 600 DPI (24 dots/mm) printheads to prevent scanning errors caused by pixel distortion.

Linear print speed, expressed in millimeters per second (mm/s), directly determines transaction throughput at checkouts and industrial conveyor lines. While entry-level desktop models print at 90 mm/s to 150 mm/s, high-capacity commercial units reach speeds of 200 mm/s to 300 mm/s without compromising image density. Print speed must be dynamically managed alongside input voltage and ambient environment parameters to ensure consistent contrast. Furthermore, mechanical reliability metrics—such as Mean Time Between Failures (MTBF), printhead service life rated in total kilometers printed (typically 100 km to 150 km), and auto-cutter endurance rated in total cuts (typically 1.5 million to 2 million cuts)—serve as primary benchmark indicators for enterprise procurement teams.

Interface connectivity dictates how fast raster graphics data transfers from the Host terminal (POS, ERP, or IPC) to the printer buffer memory. Modern thermal printers utilize multi-interface architecture to support evolving network topographies. Standard physical ports include USB Type-B for direct station connections, RS232 Serial ports for legacy industrial systems, and RJ45 Ethernet (LAN) interfaces for network-wide printing across large facilities. Wireless options such as dual-band Wi-Fi and Bluetooth 5.0 enable flexible deployment in mobile logistics and table-side hospitality setups.

When specifying hardware for high-frequency transactional environments, system architects must verify data buffer capacity, command emulation modes (such as ESC/POS, TSPL, ZPL, or EPL), and driver support across Windows, Linux, Android, and iOS platforms. A well-designed control board prevents buffer overflow errors during burst printing operations and ensures immediate execution of auto-cutter commands upon receipt completion.

The table below outlines common enterprise specifications across three primary thermal printer classes:

Direct Thermal vs. Thermal Transfer Printing Mechanisms

Direct thermal printing applies heat directly to chemically coated paper to create images, whereas thermal transfer printing uses a heated printhead to melt resin or wax ribbon onto diverse substrates.

A fundamental decision in thermal system specification is choosing between Direct Thermal (DT) and Thermal Transfer (TT) printing technologies. Direct thermal mechanism designs are mechanically simpler because they involve only one media pathway. The paper itself contains a pre-applied chemical layer consisting of a colorless dye and a matrix developer. When heated past its melting threshold by the printhead elements, the chemical mixture reacts, shifting the coated surface from clear to black (or red/blue in specialized dual-color papers). Because DT systems do not require ribbons, ink rolls, or toners, operational overhead remains low, and media loading is straightforward.

However, direct thermal media remains chemically active after printing. Exposure to high ambient heat, direct ultraviolet radiation, alcohol, oil, or plasticizer migration (commonly found in PVC storage sleeves) accelerates dark image fading and causes the white background to yellow or darken. Consequently, direct thermal technology is ideally suited for short-lifespan applications such as retail sales receipts, shipping labels with short transit cycles, visitor passes, parking tickets, and kitchen order slips where image legibility is required for days or months rather than decades.

Thermal transfer printing, by contrast, uses a three-layer mechanical system: the thermal printhead, a coated ribbon (wax, wax-resin, or pure resin), and the target substrate (paper, polypropylene, polyester, or polyimide synthetic films). As the printhead elements heat up, they transfer ink from the ribbon carrier film onto the label substrate. Once cooled, the melted ink anchors permanently into the face stock surface. This process produces durable, high-contrast images capable of withstanding extreme temperatures, chemical exposure, outdoor UV radiation, and heavy mechanical abrasion over extended periods.

European and North American buyers frequently evaluate thermal transfer solutions for chemical drum tracking (GHS compliance), automotive asset tracking, outdoor logistics, and medical laboratory specimen labeling. While thermal transfer printers carry higher initial hardware costs and require ongoing ribbon management, they remain irreplaceable for applications where thermal receipt paper degradation would cause compliance risks or inventory loss.

The key functional differences between these two methodologies are summarized below:

Primary Commercial and Industrial Use Cases

Thermal printers serve critical operational roles across high-volume retail, warehousing, healthcare, hospitality, and self-service unattended kiosk systems.

In modern commercial infrastructure, thermal printing hardware handles reliable, high-speed data output. Below are five primary enterprise sectors where thermal printing architecture provides core operational support:

1. Retail Point of Sale (POS) Systems: Modern retail checkout stations require rapid receipt generation to maintain customer line velocity. High-speed 80mm thermal receipt printers function as central output devices connected directly to electronic cash registers, barcode scanners, and payment terminals. Integrated cash drawer kick-out ports (typically driven by standard 24V RJ11/RJ12 interfaces) allow control mainboards to trigger drawer latches immediately upon print completion. Reliability, crisp logo generation, and clean partial paper cuts are vital for high-volume retail installations.

2. Logistics, Warehousing, and Supply Chain: Supply chain management relies on 203 DPI and 300 DPI thermal label engines to produce standardized shipping labels, inventory tracking stickers, pallet tags, and cross-docking barcodes. In automated fulfillment facilities, speed and barcode scannability are non-negotiable. Thermal barcode printers must render precise edge contrast on 1D barcodes (Code 128, ITF-14) and 2D matrix codes (DataMatrix, QR Code) to ensure optical scanner readability across high-speed sorter belts.

3. Healthcare and Laboratory Identification: Healthcare settings require precise patient identification and specimen traceability. Compact desktop thermal label printers produce patient wristbands, prescription labels, blood bag identification tags, and cryogenic vial labels. Synthetic thermal transfer media ensures that patient information and barcode IDs remain legible when exposed to moisture, chemical solvents, cold-storage refrigeration, and sterilizing autoclaves.

4. Hospitality and Kitchen Order Processing: Commercial restaurant kitchens represent severe operating environments characterized by high ambient temperatures, airborne grease, airborne steam, and noise. Kitchen thermal printers utilize reinforced splash-proof enclosures, loud audible buzzers, and bright visual warning LEDs to signal incoming orders to kitchen personnel. Print mechanisms deployed in these environments require protective housing gaskets to prevent moisture ingress and internal component corrosion.

5. Self-Service Kiosks and Unattended Terminals: Modern ticketing terminals, parking pay stations, gas pumps, and interactive retail kiosks use embedded panel-mount thermal printer mechanisms. These unattended units feature heavy-duty auto-cutters, anti-jamming paper chute designs, large-diameter paper roll holders, and status reporting telemetry (paper near-end sensors, jam detectors) to minimize field service technician intervention.

In intensive retail POS environments, hardware integration requires robust thermal engines capable of communicating smoothly with varied system architectures. Deploying a versatile 3-Inch Barcode Thermal Printer with Dual USB and Network Connectivity allows store operators to streamline line-busting workflows and remote receipt printing. High network responsiveness ensures that multi-terminal store arrangements process concurrent print jobs without buffer lag or dropped commands.

When evaluating international buyer demand, specific configurations consistently dominate regional preferences. European commercial clients prioritize energy-efficient low-power standby modes, strict CE/RoHS material compliance, and integrated LAN/Ethernet interfaces for cloud-managed POS installations. North American operators emphasize fast print speeds (250 mm/s to 300 mm/s) paired with high-capacity paper roll housings to handle peak retail volume with minimal roll replacements.

Hardware architects design thermal mechanisms to meet these diverse field demands through optimized chassis geometry and component placement. The section below details vital maintenance practices that safeguard thermal printhead investment over years of continuous operation.

Thermal Printhead Maintenance Protocols: To maximize the service life of ceramic thermal printheads and prevent premature pixel burnout, technical operators must perform routine maintenance every time a paper roll or ribbon roll is replaced. Use an industrial-grade isopropyl alcohol swab (99% pure IPA) to clean paper dust, adhesive residue, and thermal coating buildup off the heating line array. Never use metallic scrapers, screwdrivers, or abrasive pads on the printhead assembly, as scratching the protective glass overcoat instantly destroys individual heating dots, resulting in unreadable vertical white lines across printed barcodes.

Maintenance Guidelines and Operational Longevity Protocols

Systematic thermal printer maintenance involves regular printhead cleaning, platen roller debris removal, cutter lubrication, and input voltage stability monitoring.

Maintaining long-term operational performance in thermal printing hardware requires a structured preventive maintenance routine. Because thermal printers operate without fluid inks, the majority of field support issues stem from paper dust accumulation, adhesive residue buildup, environmental contaminants, or improper power input. Over time, micro-particles from low-quality thermal paper accumulate on the thermal printhead's ceramic element surface, forming an insulating barrier. This residue forces technicians to increase print density settings in software to maintain legibility, which drives up operational temperatures and accelerates printhead degradation.

The rubber platen roller requires consistent care. As the motor drives paper through the mechanism, friction strips microscopic fibers from the paper backing, which settle into the rubber surface. This accumulation reduces friction, leading to paper feeding slippage, compressed print lines, and incorrect barcode scaling. Cleaning the platen roller using a soft lint-free cloth moistened with isopropyl alcohol restores rubber friction and ensures accurate line spacing during high-speed printing.

Mechanical auto-cutters require periodical inspection and debris removal. Guillotine cutter blades accumulate sticky paper dust along their sliding tracks, especially when cutting adhesive label stock or linerless media. Implementing a light mechanical cleaning cycle using targeted contact cleaner or anti-adhesive solvent prevents blade jams and motor overload failures. Furthermore, powering thermal printers with stable, surge-protected 24V DC power supplies protects sensitive mainboard logic and prevents voltage drops that cause uneven print density.

In industrial POS applications where hardware uptime directly impacts customer throughput, specifying equipment with accessible cleaning paths and modular component designs simplifies routine maintenance. Utilizing a Reliable 80mm Barcode and Receipt Printer with Integrated Auto-Cutter allows technicians to swap out paper rolls, access the printhead, and clear cutter assemblies without complex mechanical disassembly.

The table below provides a recommended preventive maintenance schedule for commercial thermal hardware:

By adhering to rigorous engineering standards, evaluating technical specifications against specific application needs, and maintaining disciplined preventative maintenance schedules, system integrators and commercial buyers can maximize the operational return on investment offered by modern thermal printing systems.
