Thermal Label Printers: The Ultimate Guide to Logistics & Retail Efficiency

Core Operational Principles of Direct Thermal and Thermal Transfer Architecture

Thermal printer systems function by utilizing micro-array resistor elements that heat coated chemical substrate media or transfer molten resin and wax ribbon materials directly onto receiving media labels to produce instant, crisp, high-resolution barcode images.

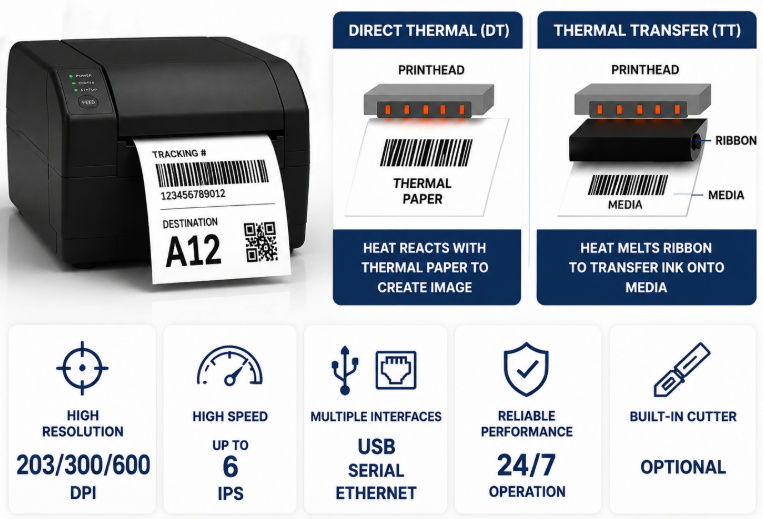

Understanding the fundamental physics behind thermal printer operation requires examining the two primary sub-categories: Direct Thermal (DT) and Thermal Transfer (TT). In a direct thermal printer configuration, the printhead comes into direct physical contact with chemically treated thermochromic paper or synthetic film. As the individual microscopic heating elements on the thermal printer printhead energize, a localized chemical reaction occurs within the substrate coating, shifting the material from clear to opaque black. This eliminates ink ribbons entirely, reducing mechanical complexity and simplifying ribbon loading routines. However, because the resulting media remains chemically active, direct thermal printer labels are inherently sensitive to ultraviolet radiation, intense heat, and chemical abrasion, making them ideal primarily for short-lifespan applications such as shipping labels, logistics manifests, and point of sale receipts.

Conversely, thermal transfer thermal printer mechanisms utilize a heated ribbon intermediate layer composed of wax, wax-resin hybrid, or pure resin compounds. When the thermal printer energizes its thin-film ceramic heating elements, the precise thermal energy melts the ribbon material, transferring it permanently onto paper, polyethylene, polypropylene, or metallic substrates. Thermal transfer thermal printer configurations produce highly durable, chemical-resistant, and UV-stable barcodes capable of remaining legibly scannable for decades under harsh environmental conditions. European and North American industrial logistics operators frequently evaluate thermal transfer thermal printer hardware for long-term warehouse storage, hazardous material labeling, and automotive component identification where environmental resistance is mandatory.

From an engineering perspective, thermal printer design emphasizes precise heat dissipation and head pressure uniformity. Thermal printer printheads consist of a linear row of microscopic heating elements, typically spaced at densities corresponding to 203 dots per inch (dpi), 300 dpi, or 600 dpi. Maintaining precise pulse-width modulation and thermal duty cycles prevents thermal blooming—a defect where excessive heat causes adjacent dots to merge, degrading barcode crispness. Modern industrial thermal printer architectures incorporate advanced microprocessors to calculate real-time temperature feedback, dynamically adjusting current pulses based on ambient environment temperatures and printing speeds to maintain consistent optical density across millions of linear inches.

Maintenance and Operation Protocols: Regular cleaning of the thermal printer heating elements using 99% isopropyl alcohol swabs after every ribbon roll or media roll change prevents resin buildup, eliminates print voids, and extends ceramic printhead service life by up to 45% under continuous operation.

Key Technical Parameters and Hardware Architecture

Selecting the ideal thermal printer hardware involves evaluating critical performance parameters including dots-per-inch resolution, linear print speed, interface options, mechanical media housing capacity, and modular cutter integration.

Engineering evaluations for commercial thermal printer procurement focus heavily on print resolution and throughput efficiency. Print resolutions are categorized into 203 dpi, 300 dpi, and 600 dpi configurations. For standard 4x6 inch logistics shipping labels and 1D linear barcodes, 203 dpi thermal printer units provide the optimal balance between high velocity and legibility, attaining linear speeds up to 300 mm/s (12 inches per second). However, when printing dense 2D DataMatrix codes, high-density QR codes, or minute component labels for electronics manufacturing, a 300 dpi or 600 dpi thermal printer is necessary to preserve module edge sharpness and avoid scan rejection errors in automated sorting machinery.

System integration and data connectivity represent another critical hardware dimension. Modern enterprise thermal printer hardware must seamlessly interface with existing Warehouse Management Systems (WMS), Enterprise Resource Planning (ERP) software, and Point of Sale (POS) terminals. Traditional RS-232 serial and IEEE 1284 parallel interfaces have largely given way to high-speed USB 2.0, Ethernet (RJ45), and wireless protocols like Wi-Fi 802.11 a/b/g/n and Bluetooth 5.0. For versatile desktop and industrial point-of-sale deployments, integrating a compact multi-interface thermal printer model such as the 80mm thermal printer with USB and LAN ports enables simultaneous connection to local POS stations and network-wide command hubs, ensuring seamless transaction receipts and barcode tag printing.

Mechanical construction and structural component selection directly influence thermal printer reliability in demanding industrial environments. High-volume distribution centers favor metal chassis constructions over lightweight ABS plastic enclosures to withstand continuous vibration, mechanical shock, and dust accumulation. Internal drive mechanisms utilizing reinforced step motors and precision gear trains ensure smooth media feeding without slippage. Furthermore, modular accessory integration—such as auto-cutters capable of performing partial or full cuts through heavy synthetic stock, media peelers with integrated liner take-up spools, and adjustable reflective/transmissive media sensors—allows a single thermal printer chassis to adapt dynamically to diverse media types, including die-cut labels, continuous roll stock, black-mark tickets, and fan-fold forms.

Thermal Management Principles: Operating a high-speed thermal printer within recommended thermal ambient windows (5°C to 40°C) prevents control board overheating, maintains uniform printhead cooling cycles, and guarantees continuous output stability without unexpected duty-cycle throttle pauses.

Logistics Integration and High-Volume Parcel Handling

Thermal printer units form the foundation of global logistics fulfillment by instantly printing accurate, durable shipping manifests, cross-docking tracking tags, and carrier-compliant barcodes that withstand automated sorting belt abrasion.

In high-throughput e-commerce fulfillment hubs and international freight terminals, the speed and accuracy of thermal printer hardware directly govern operational productivity. Logistics workflows depend heavily on standard 4x6 inch (100x150 mm) shipping labels formatted with complex barcode symbologies, including GS1-128, Code 39, and PDF417. A high-performance direct thermal printer allows shipping stations to generate parcel labels in under one second per package. This instantaneous output prevents bottlenecking at packing tables and automated fulfillment lines. European distribution networks, which operate under strict parcel tracking protocols, routinely mandate direct thermal printer configurations with real-time print verification sensors to detect degraded barcode lines prior to carrier handoff.

The strategic design of modern logistics thermal printer systems addresses key customer requirements regarding downtime minimization and rapid roll replacement. When processing thousands of shipments daily, changing media rolls introduces operational friction. Manufacturers address this by designing open-access clam-shell mechanisms and supporting external fan-fold media feeds. Fan-fold label stacks placed behind a desktop thermal printer significantly increase label capacity without expanding the printer's physical footprint. Additionally, integrating reliable network interfaces allows a centralized WMS to send print commands dynamically across dozens of thermal printer nodes distributed across massive warehouse facilities, dynamically routing print jobs based on local packing station capacity.

Logistics operators evaluate key functionality when selecting a thermal printer for cross-docking and pallet labeling applications. Key features prioritized by operational managers include:

1. Rapid first-label-out response time to eliminate operator waiting delay at packing stations.

2. High-torque platen roller drives that prevent media drift and skewing during continuous high-speed roll feeds.

3. Automatic calibration sensors that auto-detect label gap lengths, notch marks, or continuous media backing upon roll insertion.

4. Heavy-duty platen rollers that prevent adhesive bleeding buildup, ensuring consistent paper traction over millions of print cycles.

5. Flexible software driver compatibility supporting ZPL, EPL, DPL, and native XML command streams for painless middleware integration.

Preventive Platen Roller Maintenance: Cleaning the rubber platen roller in your thermal printer with a lint-free isopropyl alcohol pad removes accumulated label adhesive residue, preventing paper jam faults, media slippage, and premature motor drive gear wear.

Retail POS and Inventory Labeling Implementations

In retail environments, thermal printer technology powers point-of-sale receipt output, shelf-edge price marking, garment tagging, and real-time stock control with silent, high-speed, inkless performance.

The modern retail checkout counter demands compact efficiency, quiet operation, and absolute transactional reliability. A high-speed POS thermal printer delivers instant receipts to customers while generating detailed line-item records and promotional QR codes on the fly. Utilizing 80mm thermal paper rolls, a dedicated point-of-sale thermal printer operates at noise levels below 50 decibels—drastically quieter than legacy impact dot-matrix receipt printers. Retailers favor a flexible 3-inch barcode thermal printer for POS systems due to its drop-in paper loading, automatic cutter durability rating exceeding 1.5 million cuts, and dual USB and Ethernet connectivity that interfaces seamlessly with cloud-based POS software.

Beyond transactional checkout, thermal printer hardware is essential for back-of-house retail inventory management and front-of-house shelf compliance. Retail staff utilize compact desktop thermal printer units to produce shelf-talkers, promotional markdown stickers, and jewelry tags. Precise price markdowns require clear, high-contrast barcodes to ensure error-free scanning during customer checkout. Synthetic direct thermal labels with removable adhesives allow store clerks to re-price merchandise without leaving sticky residue on product packaging. European fashion retailers frequently specify 300 dpi thermal printer setups for printing high-density micro-barcodes and care instruction symbols on satin or woven garment tags.

Analyzing retail customer preferences reveals clear trends regarding thermal printer feature prioritization across international markets. European retail chains prioritize energy efficiency, auto-cutter reliability, and compact desktop footprints that maximize sales counter real estate. Asian retail enterprises emphasize multi-language font support within internal ROM firmware to print complex Asian characters cleanly without sacrificing throughput velocity. North American big-box retailers prioritize remote network management tools, allowing centralized IT departments to monitor thermal printer head health, drop status, and paper-out warnings across thousands of store locations simultaneously.

Receipt Mechanism Protection: Ensuring that retail cashiers avoid forcing or manually pulling thermal paper while the auto-cutter cycles prevents gear misalignment, blade jamming, and structural damage to the thermal printer cutting mechanism.

The Perfect Workflow: Pairing with Scanners

Pairing a high-speed thermal printer with high-grade optical barcode scanners creates a closed-loop data tracking system that eliminates manual data entry, prevents shipping errors, and streamlines inventory audit cycles.

The operational synergy between a precision thermal printer and handheld or fixed-mount barcode scanners represents the cornerstone of modern automated supply chain architecture. When a thermal printer generates a high-contrast 1D or 2D barcode, the optical contrast ratio between the dark printed bars and the reflective white substrate must meet strict ISO/IEC standards (such as ISO 15416 for linear codes). High-quality thermal printer output guarantees crisp edge definition, enabling 1D laser scanners and 2D area imagers to decode label data instantly on the first pass, even when moving on high-speed conveyor belts at speeds exceeding 2 meters per second.

In advanced warehouse workflows, thermal printer units work in direct coordination with barcode scanners during picking and packing verification protocols. A worker scans a pick-list item using a wireless handheld scanner; upon system verification, an automated desktop thermal printer immediately generates the matching shipping label and packing slip. Deploying a robust, network-ready unit like the high-speed thermal receipt and label printer with LAN interface ensures that print queues update dynamically in real time without communication lag. This tight mechanical integration reduces parcel misdirection rates to near-zero levels in enterprise fulfillment operations.

To establish an optimized, error-free workflow pairing a thermal printer with barcode scanning equipment, operations managers implement the following structured five-step operational methodology:

1. Database Order Generation: The core ERP/WMS system receives an order and generates a unique serialized tracking barcode string.

2. Precision Thermal Printing: The network-connected thermal printer receives the command stream, energizing its heating elements to print an ISO-compliant high-density barcode.

3. Automated Optical Verification: An inline barcode verifier or scanner immediately checks the printed label grade, ensuring ANSI/ISO print contrast and bar-width tolerance standards are met.

4. Physical Application and Scan Association: The label is applied to the package, and an operator or fixed industrial scanner scans the barcode to bind the package ID with its contents.

5. Real-Time System Reconciliation: The scanner transmits receipt confirmation back to the WMS, completing the tracking loop and updating inventory records instantaneously.

Optical Calibration Protocol: Regularly inspecting the barcode print quality output from your thermal printer using a optical verifier ensures dark-bar to light-space contrast ratios remain within ANSI Grade A tolerances, preventing downstream scan rejection by commercial logistics carriers.

Frequently Asked Questions (FAQ)

Q1: What is the primary difference between direct thermal and thermal transfer printing modes in a thermal printer?

Direct thermal mode uses heat-sensitive coated media that turns black when heated by the thermal printer head, requiring no ink or ribbon. Thermal transfer mode uses a heated ribbon to melt wax or resin onto standard paper or synthetic labels. Direct thermal is ideal for short-term applications like courier labels, whereas thermal transfer provides long-term, weather-resistant durability for asset management and outdoor storage.

Q2: How can operational managers maximize the service lifespan of a thermal printer printhead?

Printhead life is maximized by maintaining proper printhead pressure settings, utilizing the lowest functional burn temperature setting that still yields clear print density, and performing routine cleaning. Operators should wipe the ceramic printhead heating array with 99% isopropyl alcohol after every roll of media or ribbon change to remove abrasive dust and resin build-up.

Q3: What dpi resolution is required for standard logistics shipping labels versus electronics component labeling?

For standard logistics and shipping labels (such as 4x6 inch carrier labels), 203 dpi resolution on a thermal printer is fully sufficient and provides faster print speeds. For small electronics labels, jewelry tags, or high-density 2D barcodes under 0.5 inches square, a 300 dpi or 600 dpi thermal printer resolution is necessary to ensure crisp line geometry and reliable scanner readability.

Q4: Why is my thermal printer producing faint, light, or incomplete barcode lines?

Faint or incomplete printing typically stems from three causes: improper dark/heat temperature settings in the print driver, accumulated dirt or adhesive on the heating elements, or mismatched ribbon and media combinations (e.g., using a pure resin ribbon on uncoated paper stock). Cleaning the printhead and adjusting the darkness setting in the thermal printer driver usually resolves light print defects immediately.

Q5: Can a 80mm thermal receipt printer also print self-adhesive barcode labels?

Yes, provided the thermal printer model features adjustable media sensors capable of detecting label gaps or black marks, along with adjustable media roll guides. Many versatile 80mm thermal printer units support both continuous receipt paper and die-cut self-adhesive label rolls, making them dual-purpose solutions for retail POS and light inventory tagging.
