How to print a barcode in a thermal printer?

At a Glance

1. Fundamentals of Thermal Barcode Printing Technology

Thermal barcode printing relies on precise digital heat transfer onto specialized heat-sensitive media or carbon ribbons, eliminating chemical ink cartridges while delivering high-contrast, machine-readable 1D and 2D barcodes at ultra-high speed.

In modern global enterprise architecture, the physical deployment of a barcode printer represents a core operational node in automated supply chain management, retail point-of-sale systems, and industrial inventory control. Unlike traditional inkjet or laser units, a dedicated thermal barcode printer operates by selectively heating tiny electrical resistors embedded within a micro-aligned thermal printhead array. When media passes across this active printhead assembly, localized thermal energy triggers an instantaneous physical or chemical change, forming high-contrast microscopic dots that make up linear bars, spaces, or two-dimensional matrix patterns.

Understanding the mechanical choice between Direct Thermal (DT) and Thermal Transfer (TT) printing technologies is essential for B2B procurement and integration engineers. Direct Thermal printing utilizes chemical heat-sensitive paper or synthetic stock coated with a microscopic layer of leuco dyes and developer compounds. As the heated thermal elements press against the substrate, the dye layer undergoes a thermo-chemical transition to black without requiring ink or ribbon. Conversely, Thermal Transfer technology utilizes a polyester ribbon coated with wax, resin, or hybrid ink formulations. The thermal printhead melts the ribbon ink directly onto plain or synthetic label stock, producing exceptional chemical resistance, heat tolerance, and structural abrasion endurance required for long-term tracking.

Selecting the appropriate hardware configuration depends heavily on physical durability requirements and operational volume. Enterprise logistics networks, cold-chain warehouses, and high-throughput point-of-sale environments demand specialized solutions such as an 80mm Thermal Barcode Printer with USB and LAN, which combines robust high-speed direct thermal mechanisms with seamless network connectivity. Engineering teams favor 80mm (3-inch) print engines due to their optimal balance between wide-format receipt generation and multi-standard logistics label compatibility, ensuring uninterrupted barcode readability across global freight carriers.

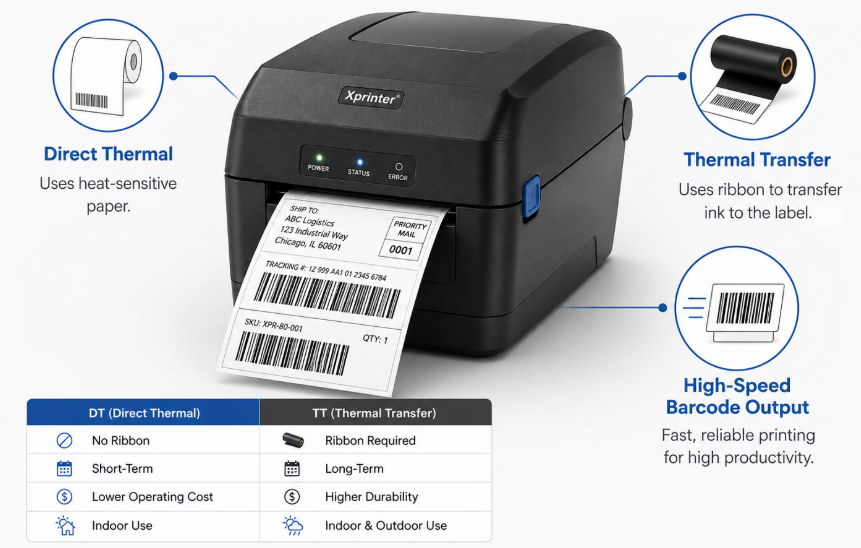

Thermal Printing Mechanism Comparison

2. Hardware Integration, Connection Protocols, and Media Calibration

Configuring a thermal barcode printer for production deployment requires establishing secure USB or LAN communication, verifying driver-level command emulation, and executing automated media sensor calibration to prevent alignment drift.

Establishing robust physical and digital connectivity is the foundational step when configuring a commercial barcode printer. Modern industrial environments rely heavily on dual-interface configurations that combine high-speed local USB connectivity with networked Local Area Network (LAN) architecture. When deploying a network-enabled device like a 3-Inch High-Speed Thermal Barcode Printer, network administrators assign static IP addresses via DHCP reservation or raw socket TCP/IP routing (standard Port 9100). This setup enables centralized Warehouse Management Systems (WMS) and Enterprise Resource Planning (ERP) platforms to dispatch print jobs asynchronously from remote servers.

Following physical installation, precise driver installation and printer command language selection must be executed. Thermal printers utilize specific hardware control languages such as TSPL (TSPL2), EPL, ZPL, or ESC/POS. Installing certified Windows or Linux POS drivers exposes advanced printer settings within the operating system, allowing engineers to define precise print media boundaries, cutter modes, print speeds, and thermal density levels. For headless or custom embedded software environments, developers bypass standard print spoolers entirely, sending direct binary command strings to the USB virtual COM port or LAN socket for instantaneous, zero-latency barcode output.

Media loading and sensor alignment represent critical physical parameters during system setup. Thermal label rolls feature gap markings, black mark indicators, or continuous media webs that must align precisely with the printer's transmissive or reflective optical sensors. After loading the media roll under the printhead lock mechanism, operators must run a hardware sensor calibration procedure—typically initiated via a utility command or feed button holding sequence. Proper calibration allows the internal microcontroller to accurately measure substrate opacity and backing paper spacing, guaranteeing that barcode images are placed with sub-millimeter precision across sequential labels.

Hardware Connection Parameters & Specifications

3. Barcode Data Encoding, Symbology Structure, and Command Languages

Printing high-density barcodes requires converting raw data strings into standard 1D linear or 2D matrix symbologies using embedded hardware firmware routines or vector rendering label software.

The accuracy of a barcode printer depends on strict compliance with international barcode symbology specifications, including ISO/IEC 15417 for Code 128, ISO/IEC 16022 for Data Matrix, and ISO/IEC 18004 for QR Code formats. When generating linear barcodes, data encoding relies on precise ratios between black bars and white space elements (the X-dimension and quiet zones). In 2D matrix formats, data is packed into square grid modules containing embedded Reed-Solomon error correction algorithms, allowing damaged or partially obscured labels to remain 100% readable by high-speed laser and camera scanners.

To print barcodes efficiently, software engineers utilize direct printer command languages rather than transmitting heavy rasterized graphics. Commands in printer languages (such as TSPL) instruct the barcode printer's internal CPU to generate vector-rendered barcodes natively in hardware memory. A standard command payload specifies the barcode type, X-dimension multiplier, bar height, human-readable text placement, and rotation angle (0°, 90°, 180°, 270°). Executing native command scripts reduces data transmission size from several megabytes down to a few bytes, maximizing throughput in automated sorting lines.

For general commercial users, graphic label design software platforms (such as Bartender, NiceLabel, or specialized POS software) provide intuitive visual drag-and-drop interfaces for layout creation. These applications generate optimized command streams in real-time, connecting seamlessly to SQL databases, RESTful APIs, and local spreadsheets. By binding dynamic database fields directly to barcode generator objects, enterprise operations achieve fully automated variable data printing for lot tracking, serial numbers, and real-time shipping manifests.

Common Barcode Symbology Characteristics

4. Optimization of Thermal Print Parameters for High Optical Scan Rates

Achieving Grade A or Grade B ANSI optical barcode readability requires fine-tuning printhead heat energy, mechanical print speed, printhead pressure, and quiet zone clearance to eliminate edge bleeding and void artifacts.

In high-volume automated supply chains, an unscannable barcode causes severe processing delays and costly compliance fines. Evaluating barcode quality involves testing contrast ratio, modulation, defect tolerance, and edge contrast according to ISO/IEC 15415/15416 standards. The primary cause of poor optical scan grades in a thermal barcode printer is incorrect thermal darkness (heat density) settings. Excessive heat causes chemical bleeding into adjacent white spaces, narrowing space widths and corrupting linear ratios. Conversely, insufficient heat creates thin, broken lines (fading) that result in instant scan failure.

Print speed is intrinsically linked to thermal energy transfer. Modern commercial hardware, such as an Industrial Thermal Receipt and Barcode Printer, can reach high operational speeds up to 200–260 mm/s. However, operating at high linear speeds reduces the dwelling time during which heating elements contact the paper. System integrators must balance motor acceleration with heat density profiles to prevent light prints or thermal head overload.

Quiet zone compliance and barcode orientation are crucial design considerations. Every linear barcode requires an unprinted quiet zone on its left and right edges (typically at least 10 times the narrow element X-dimension width). Omitting this margin prevents optical scanners from detecting the start and stop characters. Furthermore, printing barcodes in a "picket fence" orientation (parallel to media movement) yields sharper bar edges than a "ladder" orientation (perpendicular to movement), as thermal element heating and cooling cycles naturally align with vertical bar paths.

Working Principle and Thermal Management (Bold): Thermal barcode printers utilize micro-pulse heat control algorithms to modulate current passing through microscopic ceramic resistor dots. To prevent thermal accumulation and ghosting during continuous high-speed batch execution, modern print engines employ dynamic pulse temperature compensation. This technology adjusts electrical pulse duration based on real-time printhead thermistor feedback, maintaining consistent optical line density regardless of ambient environmental temperature shifts.

5. Industrial Applications and Key B2B Operational Benefits

Deploying thermal barcode printing systems offers exceptional benefits across retail, warehousing, manufacturing, and healthcare sectors by delivering high-speed execution, low operational costs, and zero ink maintenance.

Thermal barcode printing technology is widely implemented across global industrial sectors due to its mechanical reliability and cost efficiency. By removing liquid inks, print cartridges, and complex mechanical toner drums, enterprise users reduce total cost of ownership (TCO) while achieving maximum hardware uptime in challenging operational environments.

Industrial deployment scenarios and key application benefits include:

1. Retail Point-of-Sale (POS) and Inventory Processing: Thermal barcode printers generate crisp, instant checkout receipts, price markdown tags, and shelf-edge labels. High-speed 80mm thermal mechanisms streamline customer throughput while updating backend ERP inventory levels in real time.

2. Warehousing, Logistics, and Freight Distribution: Automated fulfillment centers utilize network-connected thermal barcode printers to produce GS1-128 shipping labels, cross-docking tags, and pallet tracking stickers. LAN connectivity allows multi-station print routing across massive fulfillment floors.

3. Manufacturing Traceability and Quality Assurance: Electronics and automotive assembly lines rely on thermal printing for real-time work-in-progress (WIP) tracking, component lot serial numbers, and UL/CE compliance labeling under high ambient temperatures.

4. Healthcare, Laboratory, and Specimen Tracking: Hospitals and diagnostics labs deploy thermal printers to produce wristbands, blood bag identifiers, and cryogenic vial barcodes, ensuring complete patient safety and error-free chain-of-custody tracking.

Global commercial procurement trends highlight distinct region-specific preferences for hardware features. European logistics hubs prioritize dual-interface devices featuring integrated Ethernet LAN sockets, automated energy-saving standby modes, and strict RoHS/CE environmental certifications. Conversely, North American and Asian retail markets favor ultra-fast paper feeding speeds (250+ mm/s), high-grade auto-cutters capable of 1.5 million clean cuts, and drop-in paper loading designs to optimize customer checkout efficiency.

6. Preventive Maintenance, Diagnostic Troubleshooting, and Lifespan Extension

Implementing routine preventive maintenance protocols—including thermal printhead cleaning, platen roller inspection, and media sensor dusting—maximizes hardware service life and ensures high barcode scanning reliability.

Thermal printheads are delicate semiconductor components subjected to significant friction, heat, and electrostatic accumulation during daily operations. Over time, microscopic thermal media dust, adhesive residues, and environmental contaminants accumulate on the ceramic heating element array. This buildup creates an insulating layer that forces operators to increase printhead temperature settings, accelerating thermal element burnout and resulting in vertical white streaks (dead pixels) across printed barcodes.

To extend printhead life and maintain optimal barcode scanning quality, maintenance teams must clean the thermal printhead during every media roll change (or after every 5–10 paper rolls). Cleaning should be performed using an isopropyl alcohol (IPA 99%) swab or specialized thermal cleaning pen. Gentle wipes along the active heating element bar remove baked-on debris without scratching the protective glass coating.

In addition to cleaning the thermal printhead, the rubber platen roller must be inspected for wear, adhesive accumulation, or physical gouging. A damaged platen roller creates uneven mechanical contact pressure across the printhead line, causing faint patches and barcode decoding failures. Cleaning the platen roller with an IPA-soaked lint-free cloth removes residue and restores essential mechanical traction for smooth, uninhibited media feeding.

Preventive Maintenance Schedule & Diagnostics

Maintenance Precautions and Operational Rules (Bold): Never utilize sharp metal implements, screwdrivers, or abrasive pads to clean the thermal printhead or remove stuck media labels. Physical contact with metal immediately fractures the thin protective glass coating over the microscopic ceramic resistors, causing permanent, unrecoverable vertical dead lines across printed barcodes. Always power off the barcode printer and allow the thermal head to cool for 60 seconds before initiating any manual cleaning procedures.

Conclusion

Printing crisp, scannable barcodes on a thermal printer requires a complete understanding of thermal printing mechanics, hardware interfaces, printer command languages, and parameter tuning. By deploying reliable hardware—such as an 80mm high-speed thermal barcode printer with USB and LAN interfaces—enterprise users establish a robust, low-maintenance foundation for real-time inventory tracking and supply chain management. Combining precise sensor calibration, correct symbology selection, and routine preventive cleaning guarantees high barcode scanning performance, reduced operational downtime, and optimal efficiency across all commercial logistics operations.
