At a Glance

Yes, thermal printers can print in color using specialized multi-temperature direct thermal media like ZINK or dual-color heat-sensitive paper, as well as multi-panel CMYK ribbons in thermal transfer architectures.

How Direct Thermal Color Printing Works

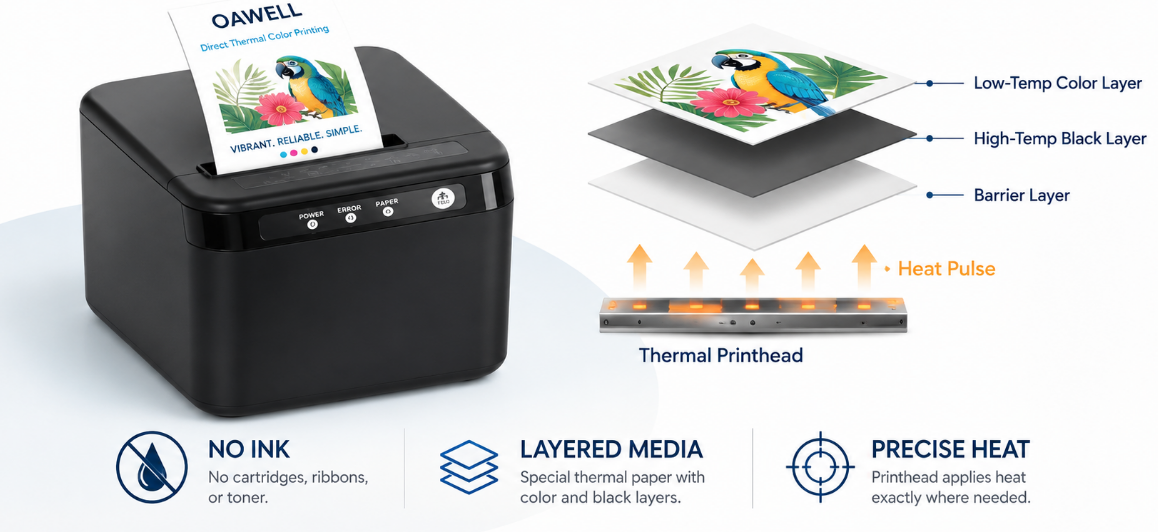

Direct thermal color printing operates by delivering precise micro-pulses of heat to specialized media containing stacked, temperature-sensitive leucomeric dye layers.

In standard direct thermal printing, a single heat pulse triggers a chemical reaction between a color former and a developer contained within a single thermal layer, turning the micro-capsules black. Direct thermal color systems expand this concept by layering multiple thermo-reactive chemical coatings onto a single film or paper substrate. Each layer reacts to a specific thermal energy density, defined by a combination of target temperature and heat pulse duration.

For dual-color direct thermal paper—commonly used in retail and ticketing to highlight logos or safety disclaimers—the paper contains two distinct chemical layers. The top layer typically activates at a lower temperature (such as 80°C to 90°C) to produce red or blue, while the base layer activates at a higher temperature (such as 110°C to 120°C) to produce black. By controlling the voltage and heat dwell time of individual printhead heating dots, the printer selective activates the intended dye without triggering lower or higher energy layers prematurely.

Full-color direct thermal technology, such as Zero Ink (ZINK), takes this physics further by incorporating three distinct dye layers (cyan, magenta, and yellow) embedded directly inside the paper. The cyan layer responds to long-duration, low-temperature pulses; the magenta layer responds to medium-duration, medium-temperature pulses; and the yellow layer responds to short-duration, high-temperature pulses. The paper itself remains colorless until passed beneath a specialized high-density thermal printhead.

1. Temperature Selectivity

   The printhead controller regulates the electrical energy supplied to each heating element. By varying activation times from microseconds to milliseconds, thermal energy reaches specific substrate depths to trigger designated color precursor molecules.

2. Chemical Micro-Encapsulation

   Color-forming Leuco dyes are encapsulated in microscopic polymeric shells along with developers. When the local thermal energy exceeds the melting point of the shell, the developer and dye melt together, crystallizing into an indelible visual wavelength.

3. Zero-Fluid Substrate Physics

   Because all chemical components reside within the media, no liquid ink, toner, or external color agents pass through the mechanical paper drive. This eliminates fluid clogging, ink drying issues, and mechanical wiper replacement requirements.

Thermal Transfer Color Printing Explained

Thermal transfer color printing produces color graphics by using precise heat elements to melt solid wax or resin pigments from multi-panel CMYK ribbons onto target media.

Unlike direct thermal printing, which relies on chemical dye reactions inside the paper, thermal transfer utilizes an external ribbon substrate coated with solid color pigments. The thermal printhead elements heat up and release pigment directly from the ribbon backer onto paper, polypropylene, polyester, or vinyl target media.

To achieve full-color output, thermal transfer systems utilize sequential panel ribbons featuring repeating blocks of Cyan, Magenta, Yellow, and Key/Black (CMYK). As the media moves through the print engine, the thermal printhead executes multiple passes over the substrate. During each pass, the printer aligns the corresponding color panel, heating specific micro-resistors to melt the wax or resin pigment onto the media before index-advancing the ribbon to the next color block.

Thermal transfer color printing is widely used in high-durability industrial labeling. Because the wax/resin compound forms a physical layer on top of the substrate, the resulting color prints resist chemical solvents, abrasion, ultraviolet degradation, and extreme temperature fluctuations far better than heat-sensitive direct thermal papers.

1. Sequential Multi-Pass Printing

   The printer indexes the substrate precise distances under the printhead for each color pass. Micro-stepper motors maintain precise registration across Cyan, Magenta, Yellow, and Black passes to prevent color bleeding or misaligned borders.

2. Thermal Ribbon Pigment Transfer

   When a thermal resistor heats up, it reaches the exact softening point of the ribbon wax or resin binder. Pressure applied by the platen roller transfers the liquefied pigment directly onto the fibrous or synthetic surface of the substrate, where it cools and solidifies instantly.

3. Variable Panel Ribbon Formats

   Industrial printers can utilize specialized ribbons containing spot-color panels (such as dedicated Red-Black or Green-Black panels) alongside standard full-color CMYK rolls, reducing overall ribbon consumption during single-color hazard labeling tasks.

Key Differences Between Direct Thermal and Thermal Transfer Color

The primary structural difference lies in the location of the color agent: direct thermal embeds heat-reactive dyes within the paper, whereas thermal transfer melts external ribbon pigments onto the substrate surface.

Direct thermal color printing requires complex, engineered thermal paper coatings. Because the color formation is entirely chemical, direct thermal prints remain sensitive to ambient heat, sunlight, and friction after printing. Exposure to high heat environments—such as a vehicle dashboard or hot industrial facility—can trigger unintended chemical reactions, turning the entire surface dark and obscuring printed graphics.

Thermal transfer color relies on inert, stable wax or resin materials coated onto a PET ribbon film. Once transferred to a substrate, these pigments are structurally non-reactive to moderate ambient heat. This makes thermal transfer color the standard choice for long-term outdoor signage, pipe identification, asset tracking tags, and GHS drum labeling.

Direct thermal color hardware operates with fewer moving parts because it does not require ribbon supply spindles, ribbon take-up motors, or tension control systems. However, direct thermal color paper is substantially more expensive per sheet than standard transfer substrates due to its multi-layer chemical structure.

1. Chemical vs. Mechanical Physics

   Direct thermal color depends on intrinsic chemical phase changes within multi-layered leuco-dye media triggered by exact temperature points. Thermal transfer relies on mechanical adhesion of melted polymer matrices directly onto an external surface.

2. Environmental Stability Factors

   Direct thermal color media retains its thermochemical reactivity throughout its operational lifespan, making it vulnerable to heat, light, and friction. Thermal transfer prints use stable pigments that maintain structural integrity across harsh environmental conditions.

3. Mechanical Hardware Architecture

   Direct thermal color print engines maintain simplified media routing paths, reducing media jam points. Thermal transfer color systems require precise multi-axis tension control systems to synchronize ribbon movement and prevent ribbon wrinkling during color changes.

Technical Specifications of Color Thermal Printing Systems

Color thermal printing systems require specialized printhead dot density, precise power regulation, and fine-tuned media tension mechanisms to ensure accurate color output.

Operating a color thermal printing system requires strict engineering controls over thermal transfer kinetics. Standard monochromatic thermal printing typically operates at resolutions between 203 DPI (dots per inch) and 300 DPI. However, achieving accurate multi-color overlays and high-density barcodes requires higher printhead resolutions, often 300 DPI to 600 DPI.

Thermal printheads comprise arrays of microscopic thin-film resistors mounted on a ceramic base. To print in color, the printer's logic board controls heat parameters through Pulse Width Modulation (PWM). By modulating the energy pulse duration down to fractional microsecond intervals, the system delivers precise calorie counts to individual thermal elements.

In high-throughput environments—such as processing multi-port network data or point-of-sale receipt traffic—hardware like the thermal barcode printer 80mm USB LAN utilizes integrated logic boards to balance high-speed printing performance, thermal energy distribution, and dual-interface connectivity.

1. Thermal Resistor Energy Regulation

   Printhead driving circuits adjust pulse durations on a dot-by-dot basis. If a resistor remains hot from a previous printing cycle, the controller scales back subsequent energy pulses to prevent heat bleed and preserve color accuracy.

2. Mechanical Registration Precision

   Multi-pass color thermal transfer systems require high-precision stepper motors and optical encoder wheels. Drive components must maintain media registration tolerances within fractions of a millimeter across cyan, magenta, yellow, and black ribbon steps.

3. Substrate Friction and Surface Energy

   Target media surfaces must maintain high surface energy ratings (measured in dynes/cm) to allow melted wax or resin pigments to flow smoothly across the substrate before cooling.

Common Applications and Industrial Uses for Color Thermal Output

Color thermal printers serve critical roles across medical, chemical, retail, and logistics sectors where high contrast visual warnings and permanent color coding are essential.

While monochromatic thermal printing handles routine shipping labels and basic receipts, introducing visual color accents improves workflow safety and operational efficiency. In logistics and industrial warehousing, color-coded thermal tags enable rapid visual sorting, reducing human pick-errors in large distribution centers.

In chemical manufacturing, color thermal transfer systems are essential for producing GHS (Globally Harmonized System) hazardous material labels. These international regulatory standards require chemical containers to feature red diamond borders alongside black hazard pictograms and text. Using two-color or multi-color thermal transfer printers allows facilities to output durable, solvent-resistant, regulatory labels on demand.

Retail and hospitality environments leverage dual-color direct thermal printers to generate visual promotional receipts. By highlighting discount coupons, loyalty point balances, and return policies in red or blue ink, retailers increase customer engagement without adding the maintenance demands of liquid inkjet systems.

1. GHS Chemical Drum Labeling

   Standard thermal transfer print engines configured with red and black ribbon panels allow chemical manufacturers to print durable, weather-resistant hazard labels directly on synthetic film stock.

2. Retail Receipt Marketing and Highlighted Logistics

   Utilizing dual-color direct thermal media enables retailers to highlight total savings, return windows, or promotional QR codes in contrasting red ink, driving higher customer engagement at the point of purchase.

3. Visitor Management and Security Badging

   Direct thermal color cards and tags allow security systems to output photo IDs or time-expiring visitor passes that display high-contrast security indicators without wet ink drying times.

Cost and Efficiency Analysis: Color Thermal vs. Traditional Inkjet/Laser

Color thermal systems feature lower routine mechanical maintenance and higher operational reliability, but exhibit higher specialized media and ribbon costs compared to liquid ink or toner printers.

When comparing printing technologies for industrial and commercial environments, enterprise decision-makers must evaluate total cost of ownership (TCO). Traditional color inkjet and laser printers feature lower paper costs, but introduce mechanical vulnerabilities, including clogged liquid nozzles, dried ink lines, fuser unit wear, and complex toner delivery paths.

Thermal color systems eliminate fluid dynamics entirely. Because thermal printheads contain no moving liquid components, printer downtime and hardware maintenance cycles are significantly lower. However, specialized multi-layer direct thermal color papers and multi-panel thermal transfer ribbons carry a higher per-print consumable cost than standard plain paper and bulk liquid ink setups.

For high-speed, continuous-duty industrial applications—where machine uptime, operational reliability, and physical label durability outweigh per-sheet paper expenses—color thermal printing remains a highly cost-effective operational choice.

1. Capital Expenditure vs. Operational Expenditure

   Thermal printers use simple solid-state mechanics, minimizing initial hardware investments and repair costs, though specialized color media leads to higher per-print consumable costs over time.

2. Downtime Avoidance in Automated Lines

   Unlike inkjet systems, which require automated priming and cleaning cycles that pause production lines, thermal color engines run continuously without risk of nozzle clogging or ink drying.

3. Media Wastage and Panel Synchronization

   Multi-panel thermal transfer color ribbons expend an entire CMYK panel group for every print run, regardless of actual color coverage. Operational efficiency depends on selecting the right ribbon geometry for target label sizes.

Maintenance and Operational Guidelines for Color Thermal Printers

Optimizing thermal color printing requires routine cleaning of printhead ceramic surfaces, careful voltage calibration, and storing heat-sensitive media within temperature-controlled environments.

Color thermal printing demands stricter maintenance routines than standard monochrome setups. Because color activation depends on precise thermal conductivity, any dust, adhesive bleed, or carbon residue on the printhead can disrupt heat transfer to the substrate. This results in uneven color density, faint output, or misaligned color layer activation.

To maintain optimal print quality, operators should clean thermal printheads using pure isopropyl alcohol (99% concentration) after every ribbon change or paper roll replacement. Wiping down the thermal array removes microscopic debris and burnt-out residue, ensuring uniform heat delivery across all printing elements.

Additionally, environmental storage conditions directly impact direct thermal media performance. Thermal color paper stock must be stored in cool, dark environments away from ambient heat sources, volatile chemical vapors, and direct sunlight to prevent premature leuco-dye activation and background discoloration.

1. System Power Off and Thermal Cooldown

   Always turn off main DC power to the thermal print engine before performing maintenance. This protects the thin-film resistor array from electrostatic discharges and thermal shock during cleaning routines.

2. Ceramic Printhead Cleaning Protocol

   Gently wipe a lint-free swab saturated with 99% isopropyl alcohol across the thermal array surface in a single direction. Avoid using metal tools, screwdrivers, or abrasive pads, which permanently scratch ceramic elements and disable print pixels.

3. Platen Roller Decontamination

   Inspect the rubber platen roller beneath the printhead for adhesive buildup, dust, or paper fibers. Clean the roller surface with a rubber-safe cleaning solution to maintain consistent drive traction and uniform printhead contact pressure.

Selecting between direct thermal and thermal transfer color architectures requires balancing image longevity, environmental exposure, operational speed, and overall substrate costs.

When continuous production speed, reliability, and low maintenance take precedence, thermal color solutions outperform liquid ink and toner systems in heavy industrial and enterprise labeling applications. Hardware designs like our thermal printer 80mm USB LAN demonstrate how solid-state heating elements, versatile interface connectivity, and robust media drives streamline commercial and industrial paper routing.

Evaluating your specific temperature exposure ranges, operational speeds, visual requirements, and total cost targets will guide you to the right color thermal configuration for your deployment environment.

Maintenance Note: Always verify printhead energy settings and media calibration after replacing thermal ribbon or paper stock to prevent thermal head burnout and maintain color consistency.
